Description
The Rainfresh CF Sediment Filter Cartridge is expertly engineered for general household applications, providing effective filtration of sediment and particulate matter such as dirt, rust, and algae. Utilizing innovative bead technology, this cartridge delivers exceptional flow characteristics while maintaining cost-effectiveness. The grooved external surface of the CF1 model enhances the surface area, resulting in superior dirt holding capacity and extended cartridge life.
Available Models:
CF1 – 5 micron nominal
CF10 – 10 micron nominal

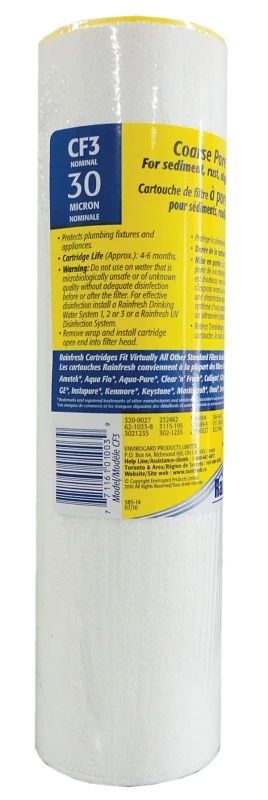

CF3 – 30 micron nominal
CF4 – 60 micron nominal
CF205 – 5 micron nominal (19.75 length)
CF230 – 30 micron nominal (19.75 length)
Specifications:
Length: 9.875 inches for CF1, CF10, CF3, CF4
Outer Diameter: 2.65 inches
Inner Diameter: 1.0 inch
Maximum Flow Rate: 8 US Gallons Per Minute (GPM) for CF1, CF10, CF3, CF4; 16 US GPM for CF205, CF230
Operating Temperature: 4 38ºC
Average Life: 4-6 months
Performance Features:
Effectively reduces dirt, rust, sand, silt, and other particulate matter from water
Constructed from premium food-grade materials, certified for safety
Low clean pressure drop of less than 5 psi
Rigid construction prevents media migration under high differential pressure
High dirt holding capacity for longer-lasting performance
Single open end design for easy installation
Universal fit for Rainfresh and most standard 10-inch filter housings
Applications:
The CF filter cartridge is compatible with Rainfresh models FC100, FC150, FC300, FC350, FC355, and most other standard filter housings, ensuring a universal fit for your filtration needs.
Installation Instructions:
Install with the yellow (open) gasket facing upwards for optimal performance.
Cartridge Life:
This cartridge is designed for up to 6 months of use or until the differential pressure drops by 10 psi, whichever comes first.
Testing and Certification:
CF cartridges are component certified by CSA International to NSF/ANSI 61 for material and structural requirements, ensuring reliability and safety in your water filtration system.
