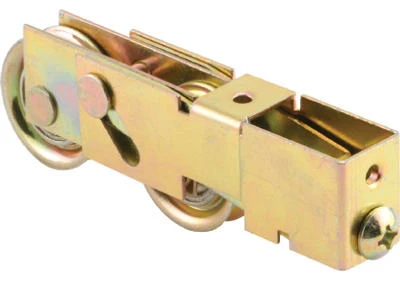

Sliding Door Tandem Roller Assembly, Steel Ball Bearings, 1-1/4 In.

Description

This is a plain back tandem roller assembly with two 1-1/4 in. concave steel ball bearing rollers. The stamped steel housing is adjustable. Used by Milgard as well as a variety of other vinyl patio door manufacturers. The housing is 3/4 in. wide and 1 in. tall and 3-1/8 in. long with a threaded mounting hole on the back end and an optional use threaded hole on the top.

Used by Milgard and a variety of other vinyl patio door manufacturers

Threaded mounting hole on the back end and an optional use threaded hole on the top of the housing

1-1/4 in. diameter ball bearing concave rollers

Stamped steel construction and rollers

Plain back housing

Rear adjusting screw

A Phillips head screwdriver is required for installation

For further dimensional information, please see the line drawing
